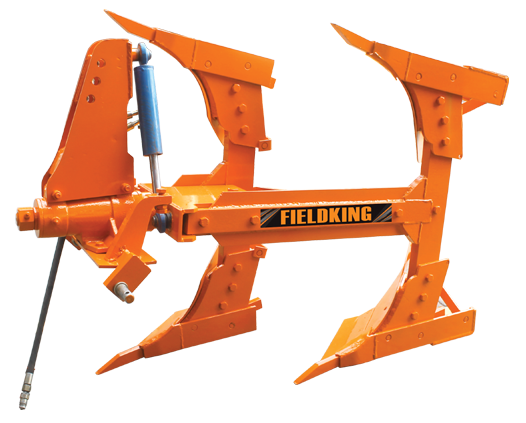

Maxx Reversible MB Plough

Ploughs

  •  It is designed to work in all types of soil for functions such as soil breaking, soil raising and soil inversion.
  •  Heavy duty headtsock of special carbon steel (ST52) which makes it capable to use for toughest ploughing job.

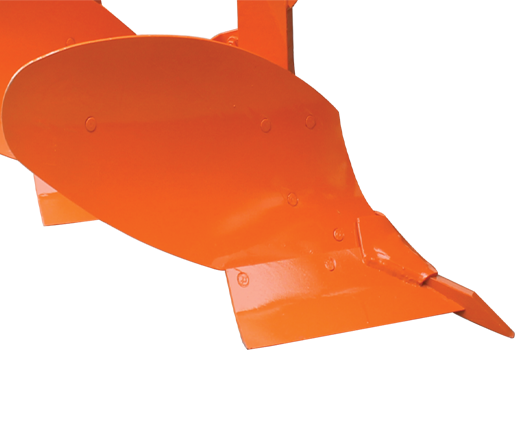

  •  Special wear resistant furrow parts which provides longer life.

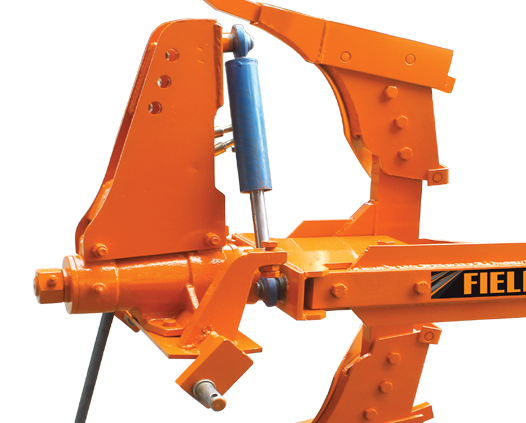

  •  High quality double acting hydraulc cylinder for easy and smooth reversing of Plough.
  •  Single piece profile cut tyne of special steel material to increase the life of Plough.
  •  Precise Hub stopper adjustment for proper alignment of Plough for better pulverization.
  •  Jerk free reversing mechanism which reduces wear and tear in parts.
  •  Adjustable bar point available to increase or decrease penetration as per requirement of field.
  •  Heavy duty 85mm main shaft turnover axle.
  •  Robust main frame which help to handle the toughest ploughing job with excellent penetration performance.
  •  The under-frame clearance is adequate to cope with trashy conditions.
  •  Lesser load to tractor and lesser fuel consumption.


  Parts Manual

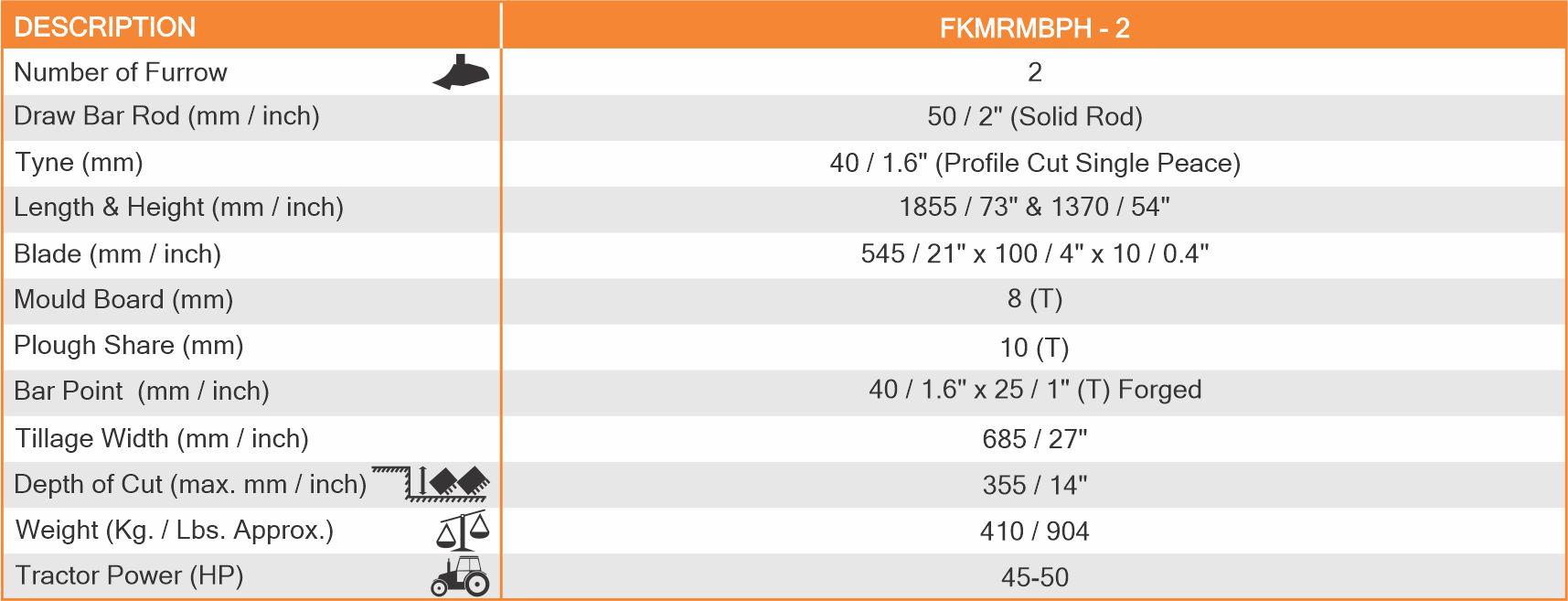

Specification
